California
California was developed for medical imaging and is a standard for retinal screening programs. California is available in multiple configurations and multiple imaging modality options. California produces a 200°, single shot retinal image of unrivaled clarity in less than ½ second and is changing the management of diseases including Geographic Atrophy, DR, AMD, and Uveitis.
With California, Optos has incorporated new technology enabling practitioners to see more, discover more, and effectively treat more ocular pathology thus promoting patient health. In addition to a field of view of 200° or 82% of retina in a single shot, California, offers the following benefits:
- Visibility of 50% more of the retina when compared to other conventional imaging devices
- Motorized head and chin rest to more easily align those patients who require additional assistance during imaging

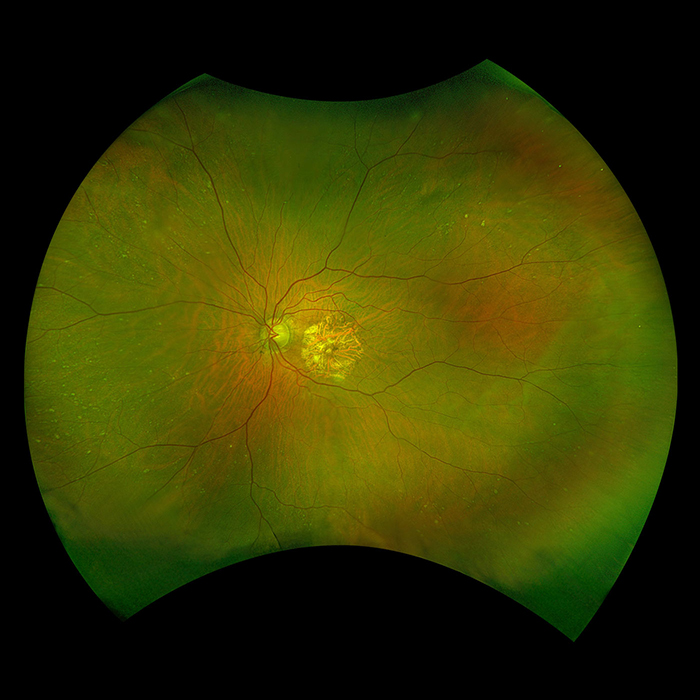

- 4-in-1 Color Depth Imaging™ produces optomap color rgb, optomap color rg, optomap Sensory Retina and optomap Choroidal in a single shot.

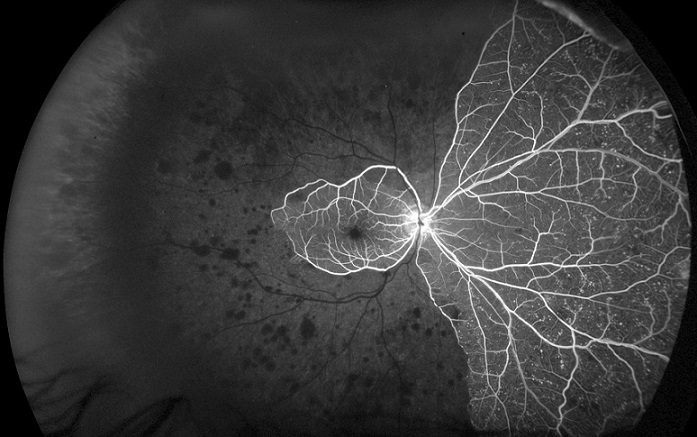

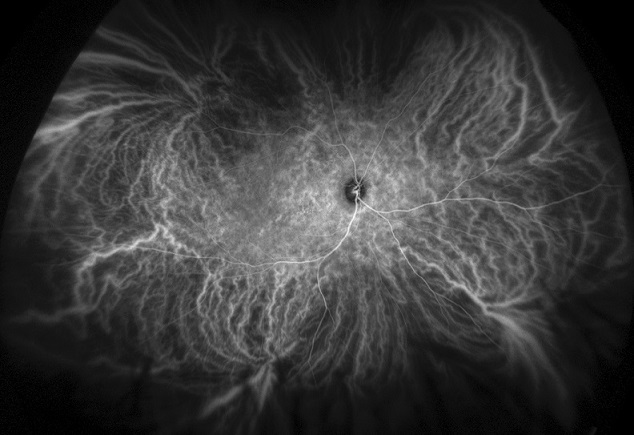

- Dye-based imaging modalities fa and icg as well as interweaved angiography for parallel capture of fa and icg images without manually switching between imaging modalities
Technical Specifications
| Image Modalities |
optomap color rgb (red, green, blue laser) |
|---|---|
| Resolution |
optomap plus: 14 μm |
| Wavelengths |
Red laser: 635 nm |
| Exposure Time |
Less than 0.4 seconds |
| Footprint |
Width: 550 mm / 22 inches |
| Weight |
34 kg/ 75 lbs |
| Laser Class |
Laser safety Class-1 following IEC/EN60825-1:2007 |
| System Voltage |
US: 100-120V at 50/60Hz |
| Power Consumption |
Max. 300 VA |
| Communication Protocol |
DICOM Compatible |
Introducing California with Color rgb!
Image Modalities

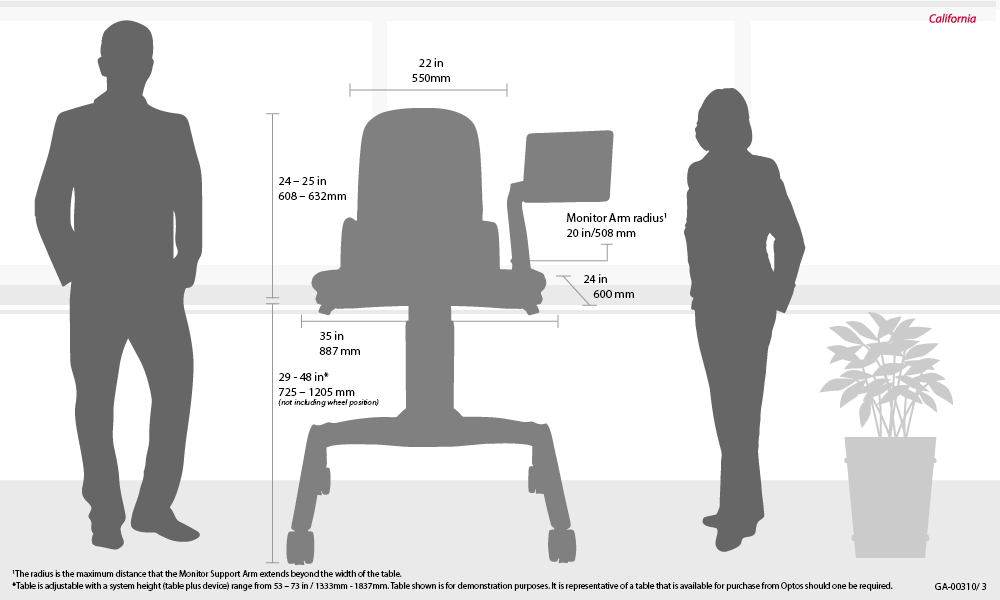

California Family Device Footprint
